READYLIFT | 2.5″ LEVELING KIT | F250/F350 2011-2021

89.000 KWD

ReadyLIFT has engineered a line of suspension products made to fit the new 2011-2021 Ford Super Duty F250/F350/F450 4WD trucks. Our 66-2725 2.5″ Leveling Kit provides new 2017=2020 F250 4WD truck owners with the ability to install wheel and tire combinations up to 35″ and keeping the smooth OEM ride and drivability.

NOTE: – This 2.5″ kit provides a near-level stance on F250 trucks with the factory 3″ rear block. Some may measure 0.5″ less than the true level.

This ReadyLIFT Leveling Kit includes 2.5″ powder-coated steel coil spring spacers, sound isolators, shock extensions and sway bar frame mount spacers designed specifically for the Super Duty platform. When it comes to levelling you get what you pay for. This great system specifically incorporates more than just front levelling. The sound isolator is installed between the spacer and spring to retain that great OEM ride and quiet sound. Shock extensions allow you to retain the use of those great riding brand new front shocks rather than having to replace them with cheap aftermarket versions. In addition, Ford changed the front suspension on the new 2017-2021 Super Duty trucks and in order raise the front of the truck the front sway bar frame mounts must be spaced downward. ReadyLIFT designed new sway bar mount spacers just for this reason, something you won’t get with other kits. If you are looking to make your F250 4WD sit perfect over 35″ tires then this strong 2.5″ Leveling kit is exactly what you need!

ReadyLIFT Smart Suspension Technology is used to make this kit very user friendly to install, requiring no cutting or drilling. Like all other ReadyLIFT kits, the 66-2725 2.5″ Leveling Kit is guaranteed for life against manufacturing defects.

NOTE: Some trucks may require “67-2538 Track Bar Relocation Bracket”

NOTE: Not compatible with TREMOR editions.

35″ Maximum tire diameter
35×12.50 for no rub on a 9″ wide wheel with +25 offset
17″ – 35X12.5R17
18″ – 315/70R18
20″ – 295/65R20 / 325/60R20
22″ – 35X12.5R22

When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer’s construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 8-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

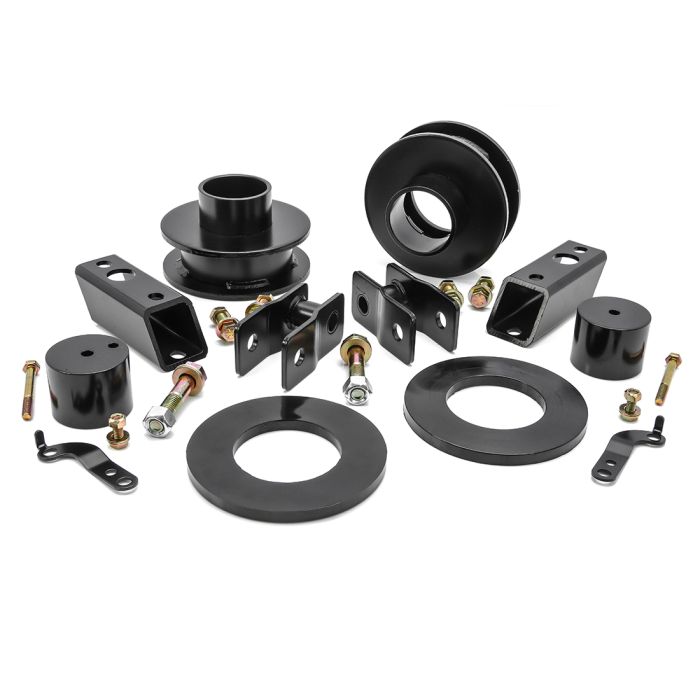

KIT COMPONENTS

(2) Steel coil spring spacers
(2) sound isolators
(2) sway bar mount spacers
(2) shock extensions

SKU: 66-2725 Category: Suspensions Brand: READYLIFT Brand: READYLIFT

Additional information

Weight	8 kg
Dimensions	42 × 23 × 23 cm
