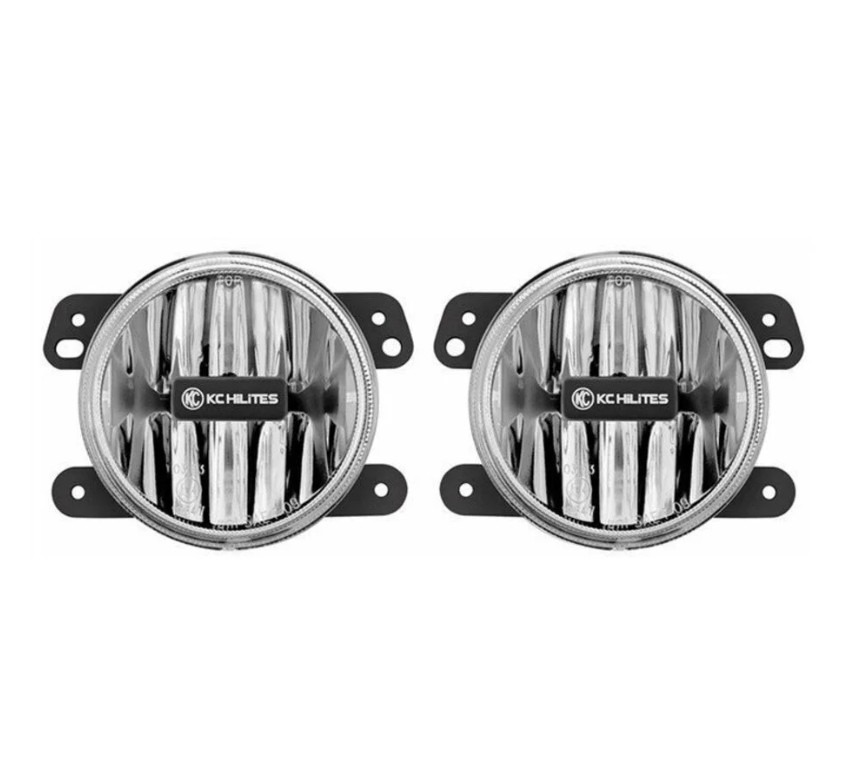

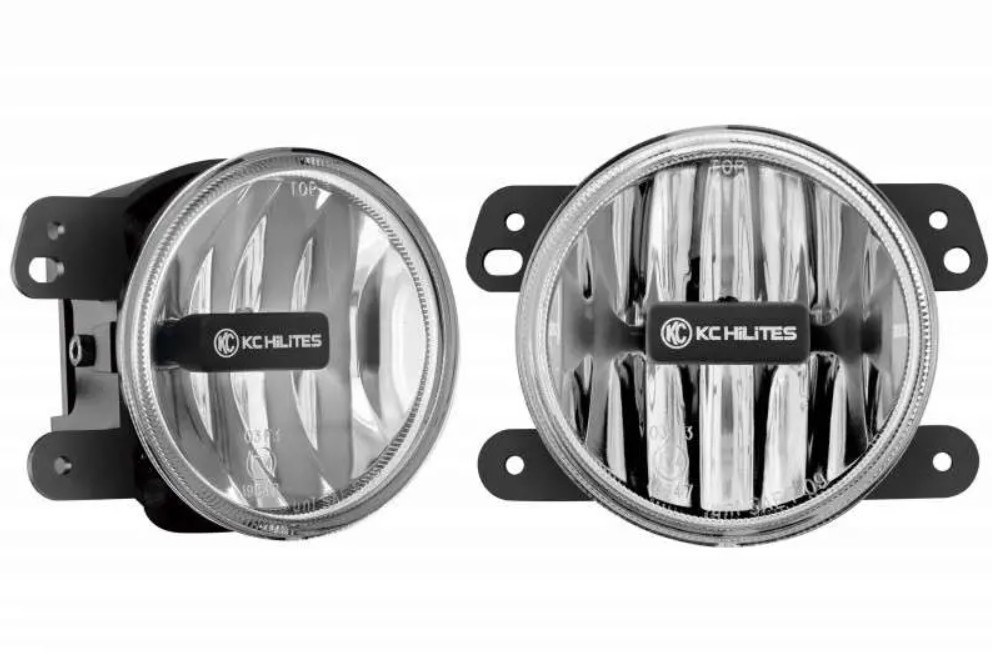

KC | 4″ GRAVITY LED G4 FOG BEAM | 866 LUMENS EA | JK 2DR/4DR 2007-2017 | PAIR

KC’s 4″ Gravity® LED Replacement Fog Light for Jeep JK feature bright CREE LEDs in a street legal fog beam pattern. Sealed magnesium housing and amber or clear LED with poly-carbonate lens. Full OE bolt-on mounting brackets and plug-n-play wire connectors(10-18 JK models only) for easy install.

FEATURES
-10W 4″ Gravity® LED Fog Lights
-Lightweight Magnesium Housing for Maximum Heat Dissipation
-Street Legal 2007-2018 Jeep JK Application(Excludes 2013 Anniversary Edition)
-OE Factory Connectors for Plug-N-Play Install on 10-18 Jeep JK (Excludes 07-09 Models)
-Clear or Amber LED
-Shatter Resistant Polycarbonate Lens
-Fog Beam Pattern (SAE & ECE Street Legal)

LIGHT PERFORMANCE(PER LIGHT)
-Raw Lumens: 866 lm
-Compliance: Fog beam meets SAE J583 & ECE-R19 Street Legal
-Lux @ 10 Meters: 150 lx
-Candela: 15,000 cd
-Beam Distance (Meters): 245m

SPECIFICATIONS(PER LIGHT)
-Wattage: 10W per light
-LED Source: CREE LED
-Color Temperature: 5000K
-Amp Draw: .74A
-Voltage: 9V-32V
-IP Rating: IP69
-Product Dimensions: Universal = W – 3.94″ x H – 3.94″ x D – 3.23″, Jeep JK = W – 3.94″ x H – 3.94″ x D – 3.44″

Parts Included in Pair Pack
-(1) 10W 4″ Gravity® G4 LED Fog light
Gravity®EXTREME OUTPUT AND EFFICIENCY
The 4″ Gravity® LED Fog Lights are powered by KC’s patented Gravity® Reflective Diode(GRD) and optical reflectors to deliver an incredible 150 lx @ 10m using only .74A per light. Our patented GRD (Gravity® Reflective Diode) system aims the LEDs into the precision reflectors to capture all the light and project it forward. This results in a more controlled and far reaching beam pattern than ever before.

STREET LEGAL FOG BEAM PATTERN AND ADVANTAGES
Fog Beam- Provides a low, wide angle light pattern that increases short-range visibility. Ideal pattern for lighting pathways close to ground in low visibility conditions like dust, fog, snow and rain.

ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION

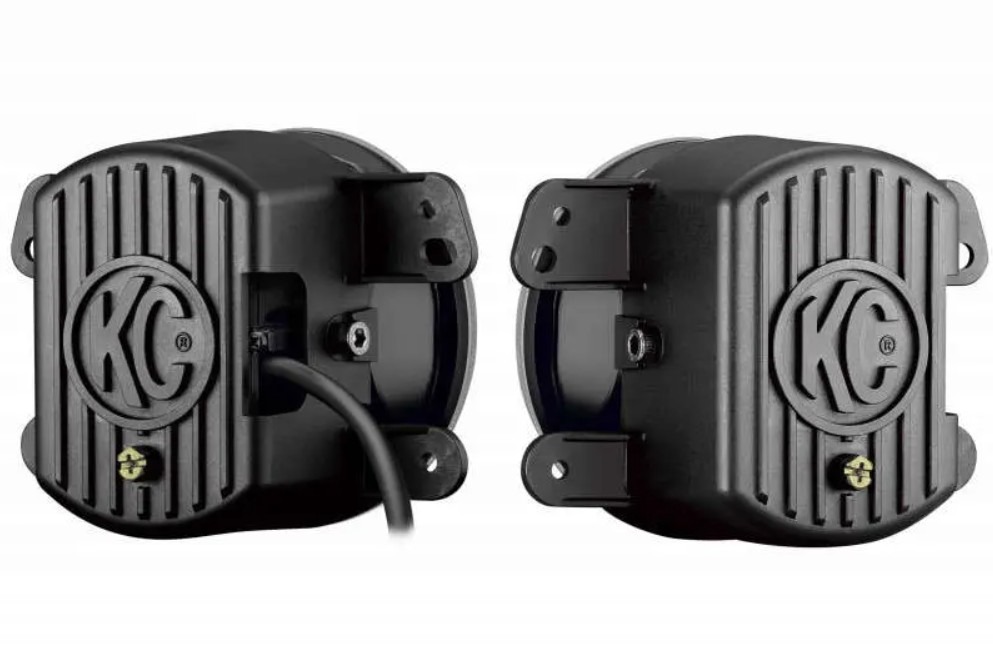

KC’s Innovative adjustable mount allows users to easily adjust the aiming of lights horizontally for an optimum and consistent beam angle. KC’s OE mounting system bolts directly up to OE bumper locations on 07-17 Jeep JKs.

STRENGTH & DURABILITY
Constructed from an IP69 rated lightweight magnesium housing and shatter resistant polycarbonate lens creating a fully self contained LED light housing.
