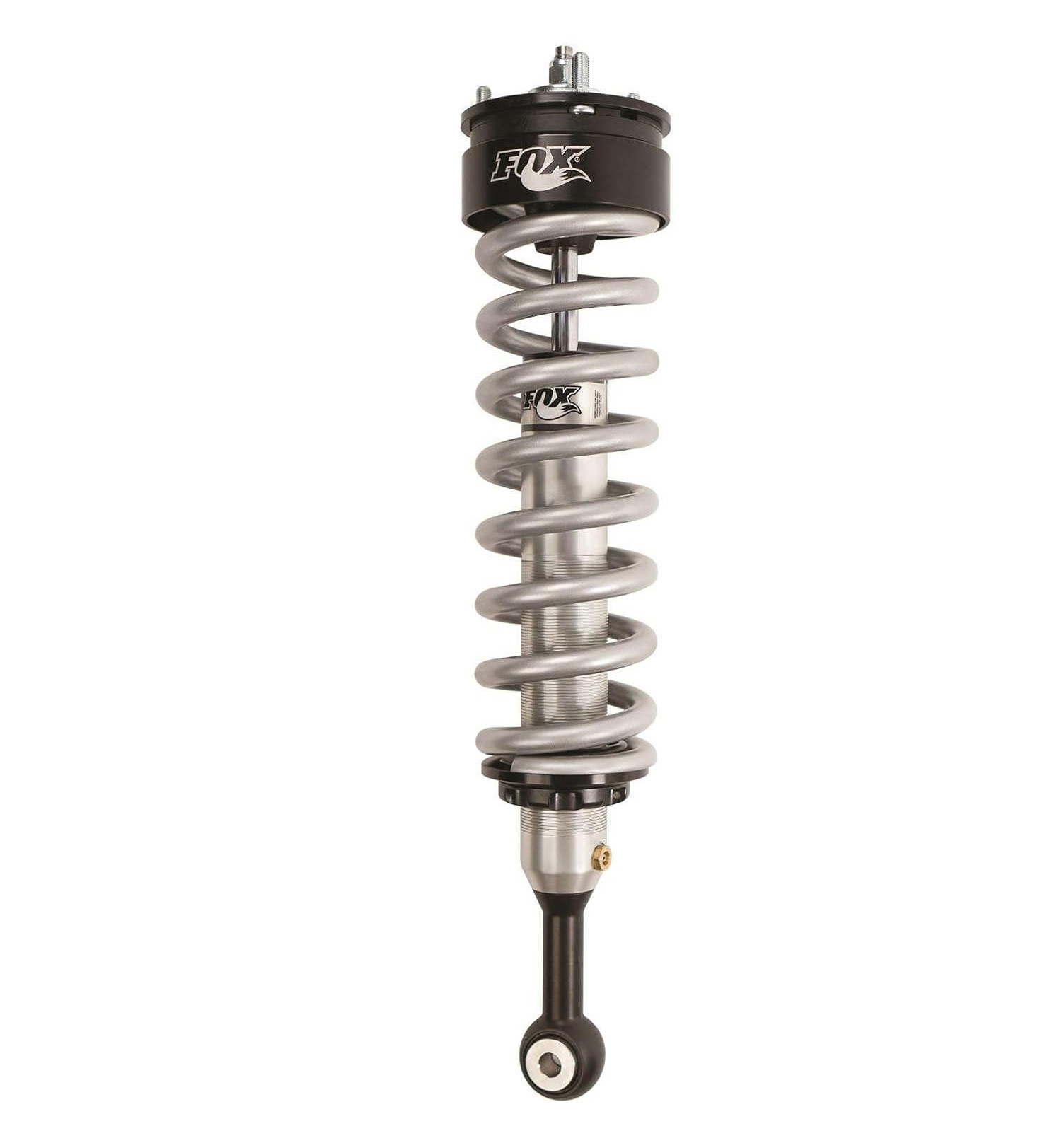

FOX | 0-2″ FRONT 2.0 PERFORMANCE C/O IFP EA | 2005-2015 XTERRA

175.000 KWD

Our bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.

Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.

Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.



Features:

    • Body: 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
    • Body Plating: Clear-anodized for a durable finish
    • Reservoir: Internal IFP mono-tube reservoir design
    • Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
    • Shaft: 5/8″ hard chrome plated heat-treated alloy steel
    • Piston: Race-developed high-flow piston design
    • Valving: Application specific valving to maximize performance
    • Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
    • Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
    • Bearing: Large diameter, heavy-duty spherical
    • Adjustments: Ride height preload ring
    • Extended: 16.857
    • Compressed: 12.532
    • Travel: 4.325
    • Top Mount: OEM
    • Bottom Mount: Eyelet



ENQUIRE NOW

SKU: 983-02-054 Category: Tag: Brand: FOX
