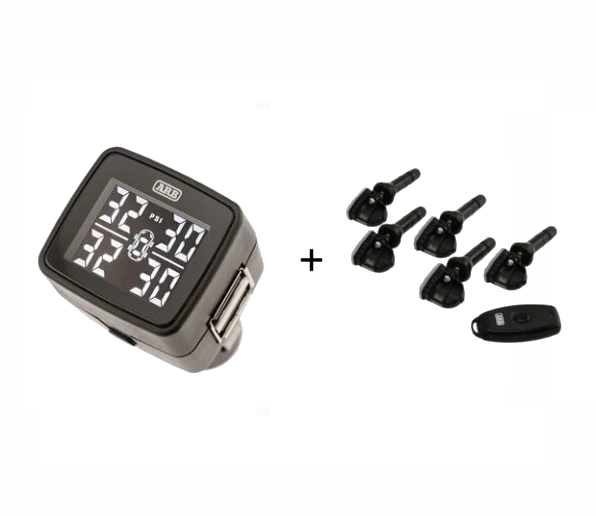

ARB | TPMS INTEGRATED DISPLAY W/ INTERNAL 5 SENSOR SYSTEM

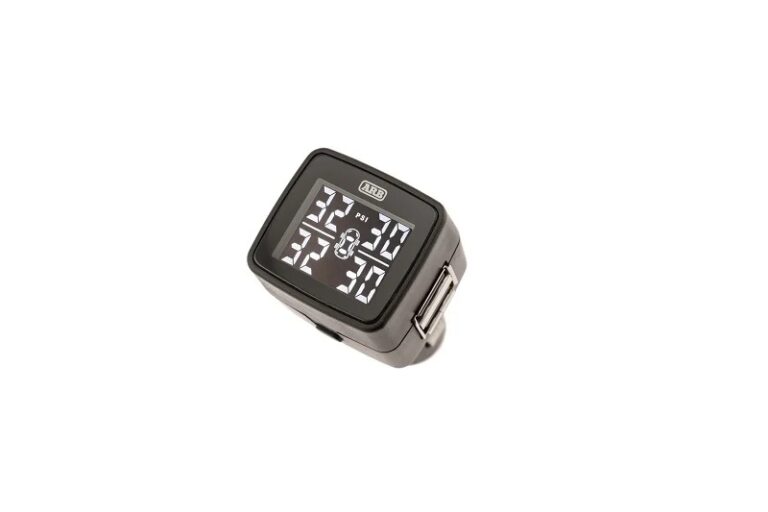

TPMS INTEGRATED DISPLAY

• On and off-road modes
• Monitors up to 9 tires including the spare (requires the trailer-repeater module and additional sensors)
• Trailer only mode (requires the trailer-repeater module and additional sensors)
• One button to control all settings
• Alerts for when pressure varies more than +/- 25% of set psi
• User adjustable ranges per axle/tire
• User adjustable alert threshold on road (23-80psi)
• User adjustable alert threshold off-road (5-30psi)
• Selectable pressure and temperature measuring units
• Tire leakage alarm
• Low pressure alarm
• High temperature alarm
• High pressure alarm
• Low battery voltage alarm
• Sensor missing/no communication alarm
• Display dimming switch

ARB TPMS Internal 5 Sensor System allows you to pre-set your off-road PSI with an amber-colored off-road mode on this TPMS Sensor System 819103 or normal on-road model setting for a personalized choice of tire pressure monitoring. The ARB TPMS offers two profiles for the user, on-road mode for general driving and an amber-colored off-road mode used to monitor up to five tires. Off-road mode is achieved by pressing the set button twice. This changes the pre-set profiles and causes a faster response on the display to any change in tire pressures. In the on-road setting the user has set the tire pressure to their choice of PSI per axle, if the user drives off-road they can have their tire pressure pre-set to a different psi. This means as soon as they’re ready to go off-road, they drop the tires to the pre-set psi and change the ARB TPMS to off-road mode with two simple button clicks.

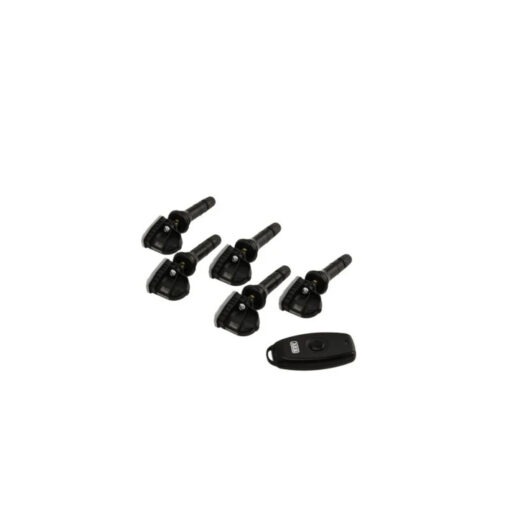

• World-leading manufactured Schrader sensors
• Alerts for when pressure varies more than +/-25% of set psi
• User-adjustable alert threshold on road (adjustable range: 23-80 psi/1.5-5.5 bar
• User-adjustable alert threshold off road (adjustable range: 5-30 psi/0.3-2.0 bar)
• Selectable pressure and temperature measuring units (psi/bar/˚F)
• Tire-leakage alarm (audible and visual)
• Low-pressure alarm (audible and visual)
• High-temperature alarm (audible and visual)
• High-pressure alarm (audible and visual)
• Pressure monitoring range: 5-99psi/0.3 – 6.82 bar
• Low-battery voltage alarm (audible and visual)
• Operating frequency: 433MHz +/-0.75MHz
• Operating temperature: -40°F to +248°F
• Battery life: up to 5 years
• Includes pairing tool for simple set up
