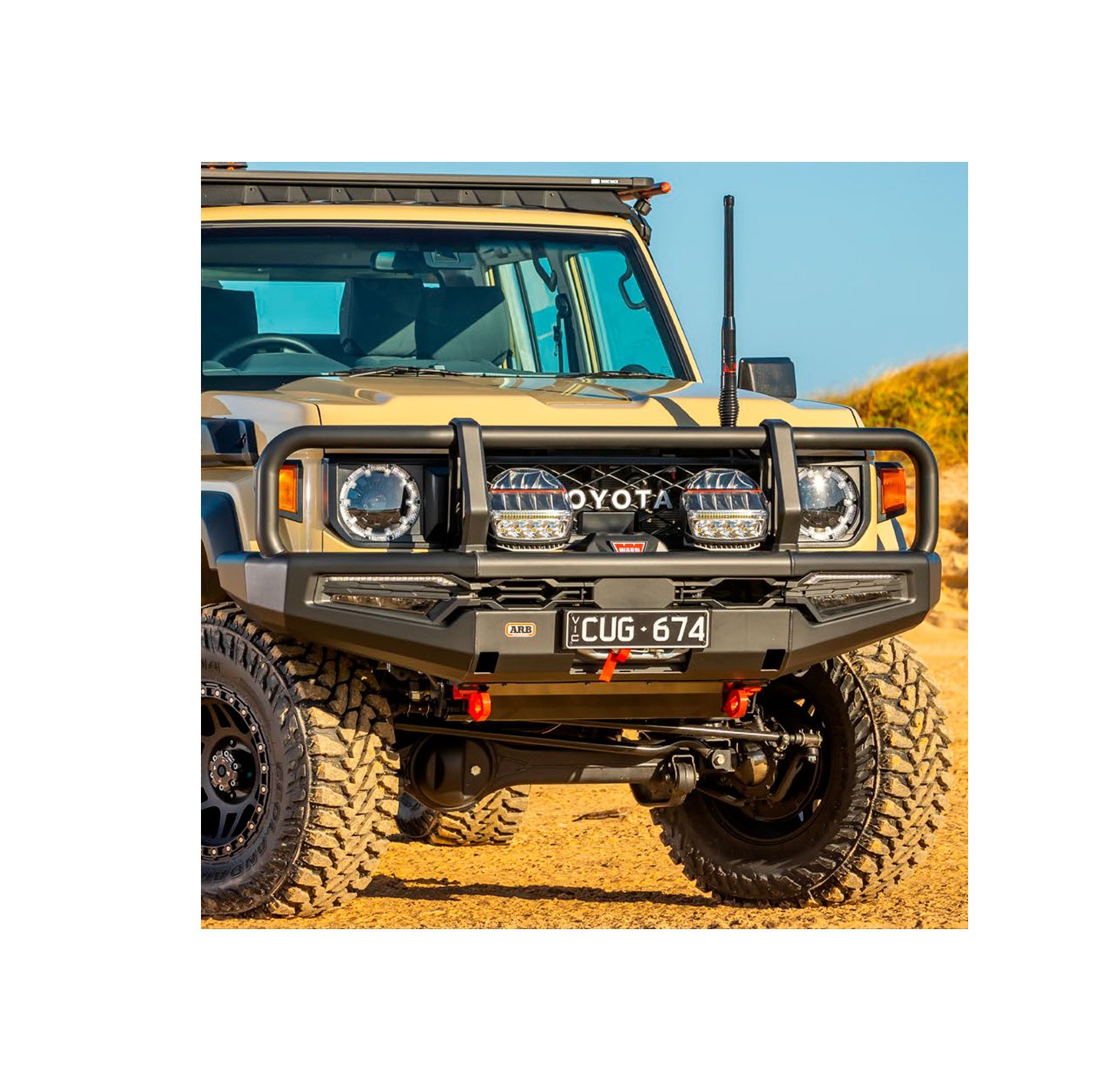

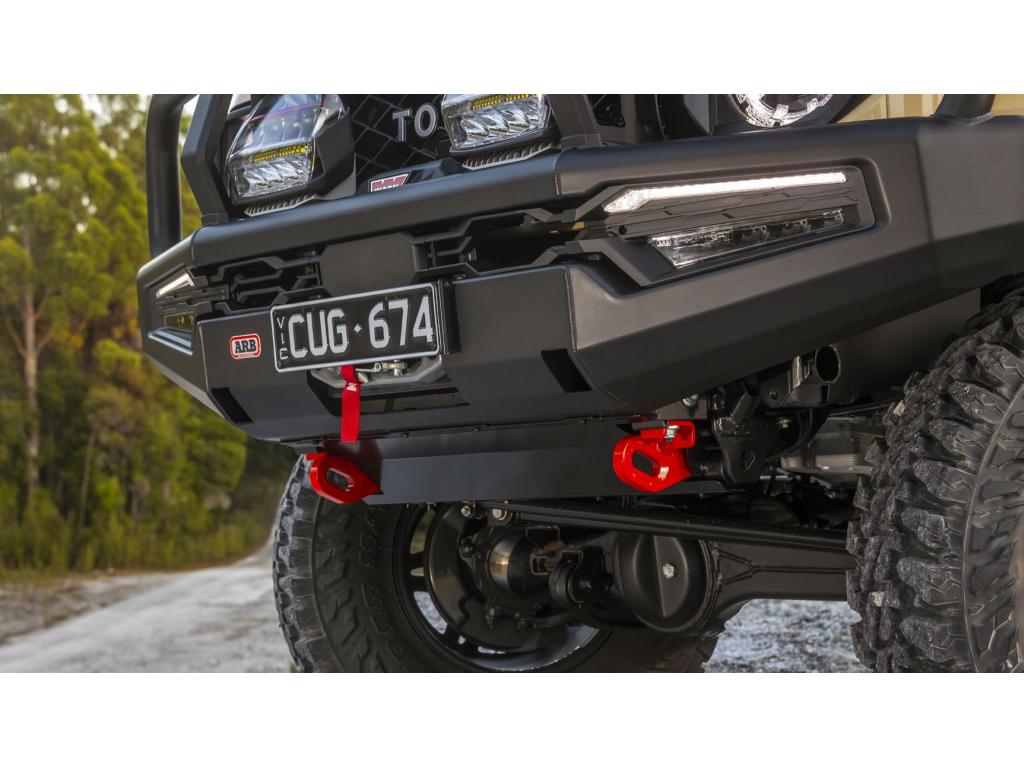

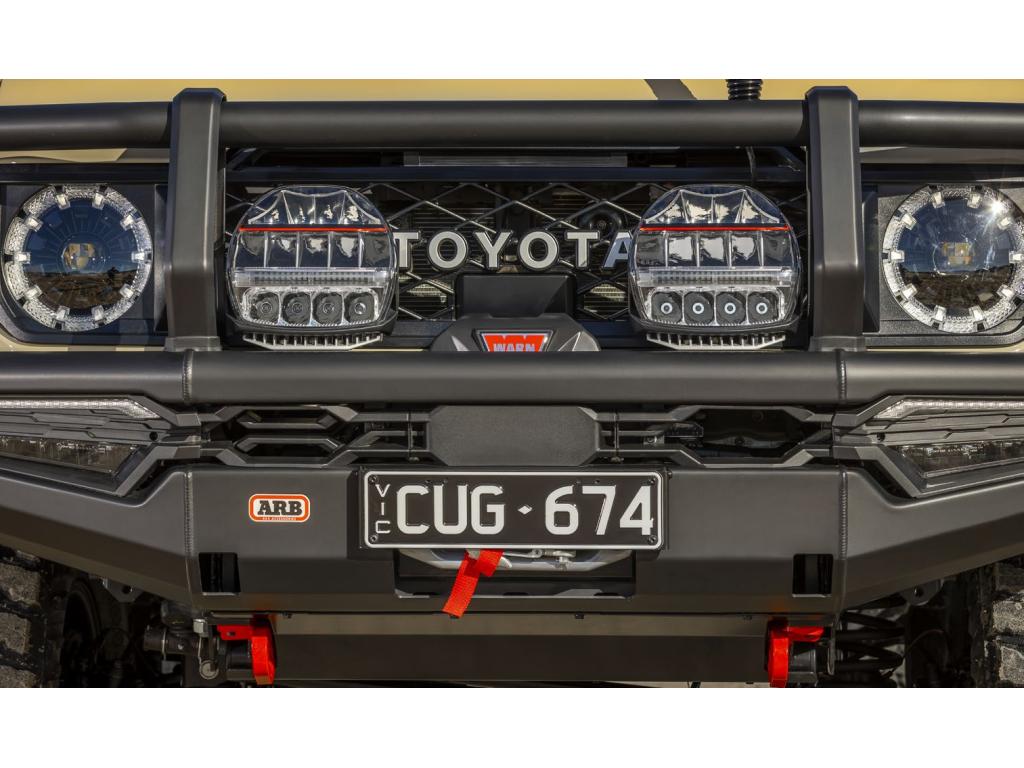

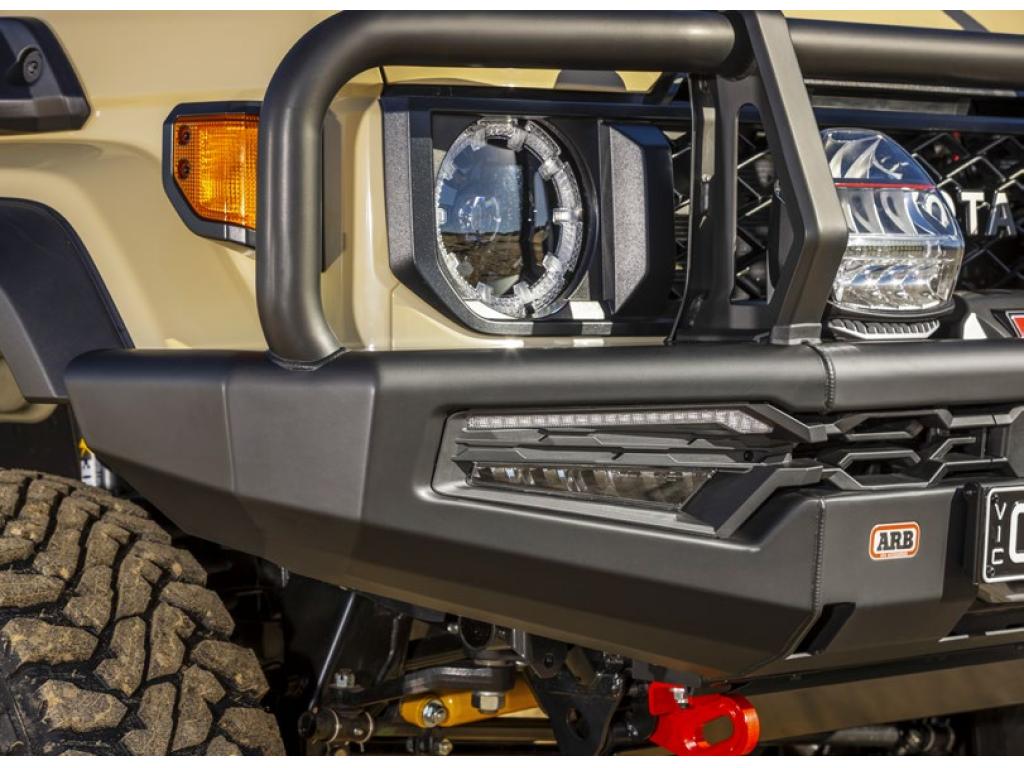

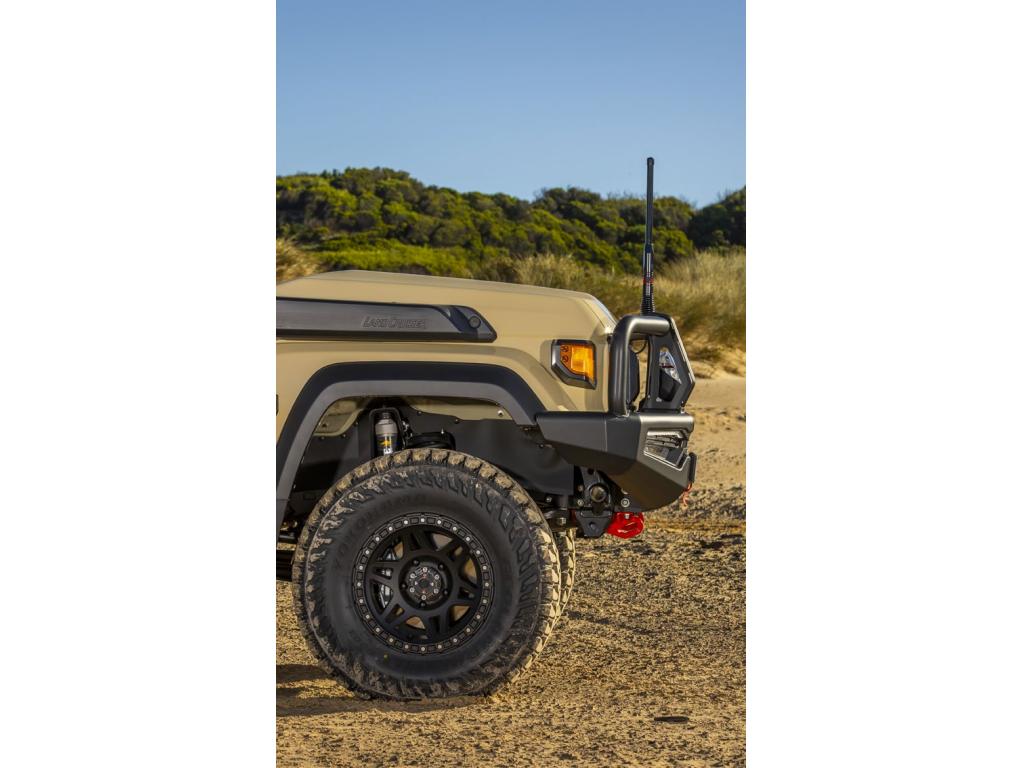

ARB | SUMMIT MKII FRONT WINCH BUMPER KIT | LC71/LC76/LC78/LC79 2024+

ARB offers a wide array of bumper accessories such as winch installation kits, driving lights, looms, license plate kits, and hardware to complement our range of different bumpers, from the sleek Deluxe and Sahara styles, to the more functional Commercial bumper

Features:

• Vehicle specific design
• Winch Fit Kit
• Vehicle-specific design suitable for the Toyota LandCruiser 70 Series (Double Cab, 76 Wagon, 78 Troop Carrier)
• Registered design of style components
• Durable steel construction for maximum protection
• Incorporates ARB’s renowned multifold wing design with lift and camber for optimum drag and approach angle
• 30mm radius on wings and center section
• 60.3mm outer frames and center cross tube
• Airbag-compatible mounting system, secured to the chassis using high-strength bolts
• Split panel design for maximum strength and airflow
• Lower panels not provided. Radiator protection panel P/N 3512170
• Pressed top panel and aluminum winch cover panel (matte black powder coated)
• Lifting points for ARB Jack or Hi-Lift located on the lower panel
• Two antenna mounts located on the center frame
• Optional Winch Installation Kit 3512150 and Winch Spacer Kit 3500605
• Will accommodate Warn, Bushranger, and Smittybilt low-mount electric winches up to 12,000 lbs
• Provision to accommodate ARB Intensity, Intensity IQ and Solis LEDs, and a range of Bushranger and IPF lights
• Includes ARB’s 4-in-1 lighting package comprising LED fog light, LED daytime running light and LED indicator and position lights
• Compatible with original equipment TSS safety features
• The bar adds approximately 45mm to the overall length of the vehicle
• Approximate weight of the bar and mounting kit is 62kg
• Approximately 27.5kg is removed from the vehicle for the installation of the bar
• Metaprep primer for increased corrosion resistance
• Matte black powder coated finish
