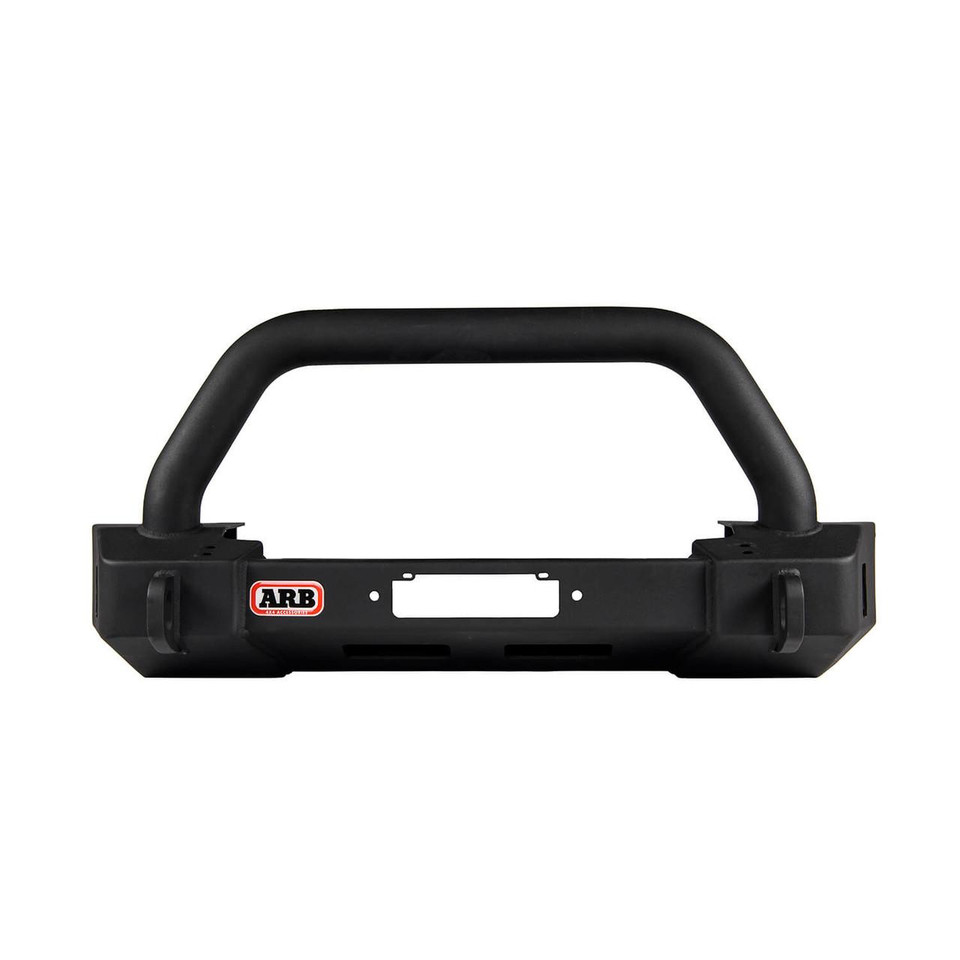

ARB | FRONT STUBBY BUMPER | JL 2018+/JT 2020+
285.000 KWD
RB Jeep Wrangler JL Stubby bars provide a winch platform and extra clearance for larger diameter tires. Often tires larger than 35 in. rub a traditional-style ARB Deluxe bar. JL Stubby bars eliminate this issue since the bar is only as wide as the grille.
Even though the bars are very compact, they have many features including full SRS airbag compatibility. Each outer section features high-lift jacking points, brackets are provided for driving lights, and on top of the 3 in. the main tube is a mount for LED light bars or antennas. Central on each outer section is .79 in. thick 350-grade recovery points that tie directly into the chassis. The kit also features a bracket to relocate the vacuum pump on later model vehicles.
The winch platform allows mounting most traditional low-mount winches or narrow-mount pattern competition-type winches. A bracket is provided to locate the control box in the centre of the bar. Two front “flip-up” style license plate mounts are provided: one for roller fairleads and one for Hawse-type fairleads. These allow the plate to be located over the fairlead and flipped up out of the way when the winch is in use.
FEATURES
-
- Vehicle specific design to complement the Jeep Wrangler JL
- Durable steel construction for maximum protection
- Manufactured from 4mm laser cut and folded steel sheet
- Equally suited to winch and non-winch applications
- Twin jack points in the bumper perfect for use with ARB JACK
- Antenna tabs for fitment of antennas or driving lights
- Provisions to accommodate a range of IPF and ARB Driving Lights
- 0.8” 350-grade steel recovery points
- 3” x 2mm ERW centre frame tube
- All hardware zinc plated for corrosion resistance
- All exterior surfaces are CMT pulse welded
- Zinc primed followed by textured Integrit black powder coat finish
- Bumper weight including fitting kit: Approx 75lbs
- Bumper dimensions: 20in H x 44in W
COMPATIBLE
-
- 2020 Jeep Gladiator (JT)
- Jeep Wrangler 2-Door (JL)
- Jeep Wrangler Unlimited 4-Door (JL)
Additional information
| Weight | 30 kg |
|---|---|
| Dimensions | 121 × 59 × 40 cm |
