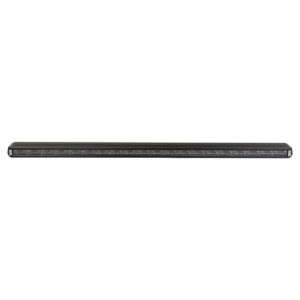

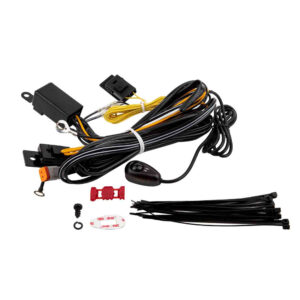

ARB | SLIMLINE LIGHT BAR WITH WIRING KIT

1780500 – ARB Slimline Roof Rack Light; For Use with ARB BASE Racks

Complementing the sleek design and mounting system of the BASE rack, the ARB Roof Rack Light Bar utilizes the simple mounting system, of the BAR Rack allowing it to be quickly and easily setup.

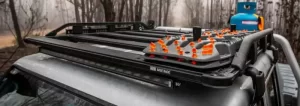

Sitting at 36″ wide, the mounting system allows for the light bar to be installed either in front of the rack or nicely tucked up underneath.

Features:

• Unique Reflector Design to Provide Optimum Distance and Width for Highway Driving
• Reflector Design Limits Light Reflection off Hood or Bumper
• Combo beam technology provides excellent mid-to long-range spread as well as distance down the road
• Virtually Indestructible Polycarbonate Lens
• Extruded Aluminum Body with Stealth Black Powder-coat Finish
• Mounts Suitable for BASE Rack and ARB Trade and Touring Racks
• Brackets Included Allow two Mounting Options Dependent on Roof Rack
• 304 stainless hardware
• Reverse polarity protection
• Breather with pressure-tested seal
• Vibration and UV Tested
• Dust and Waterproof to IP68
• Three-year Warranty
• Two-pin, Over-moulded, Waterproof Plug

Specifications

• Weight: 3.07 kg
• Inputs: 12V to 48V
• Power: 130 W
• Current Draw: 9.2A @ 14.4V
• Outputs: 1 lux @ 728m, 9279 raw lumens, 8552 effective lumens
• Spread: Horizontal 8° & Vertical 6°
• Operating Temperatures: -40°C to +65°C
• Colour Temp: 5500-6000K
• Runtime Life: 50,000hrs
• Connector: 2 pin DT with over moulded waterproof plug
• Input Cable Length: 330mm (male terminal)
• Total Measurement: 954.9 x 35 x 67mm
• Dimensions: 954mm (37.55”) x 67mm (2.63”) x 34mm
• Certifications: R1O, CE & ROHS
