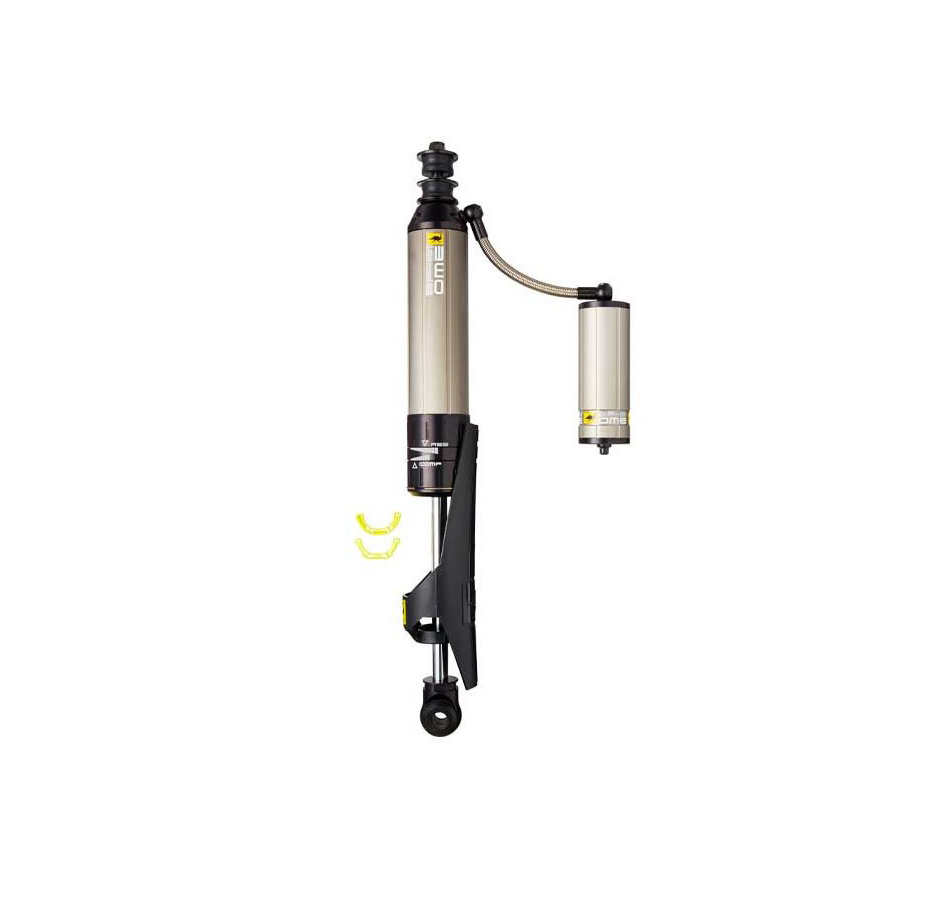

ARB | BP51 REAR SHOCK | LC300 2022+ | 50MM

BP51 Bypass system makes these shock absorbers an option to improve sensitivity, without the need to make any modifications to the vehicle. It has an easy configuration adjustment, thanks to its ability to adjust compression and extension. This allows us to adjust the suspension settings to deal with different scenarios.

The shock body, expansion bottle and other components are made from 40 micron 6061 T6 type 3 anodized aluminium. This alloy has high density properties, which guarantees great heat dissipation capacity and resistance.

The BP-51 is not only a product developed and tested by ARB. Rather, all BP-51 shocks are manufactured in-house at ARB by the OME production team.

CHARACTERISTICS
– External regulation in compression and extension.
– 51mm internal body with oil recirculation
– Vehicle specific applications

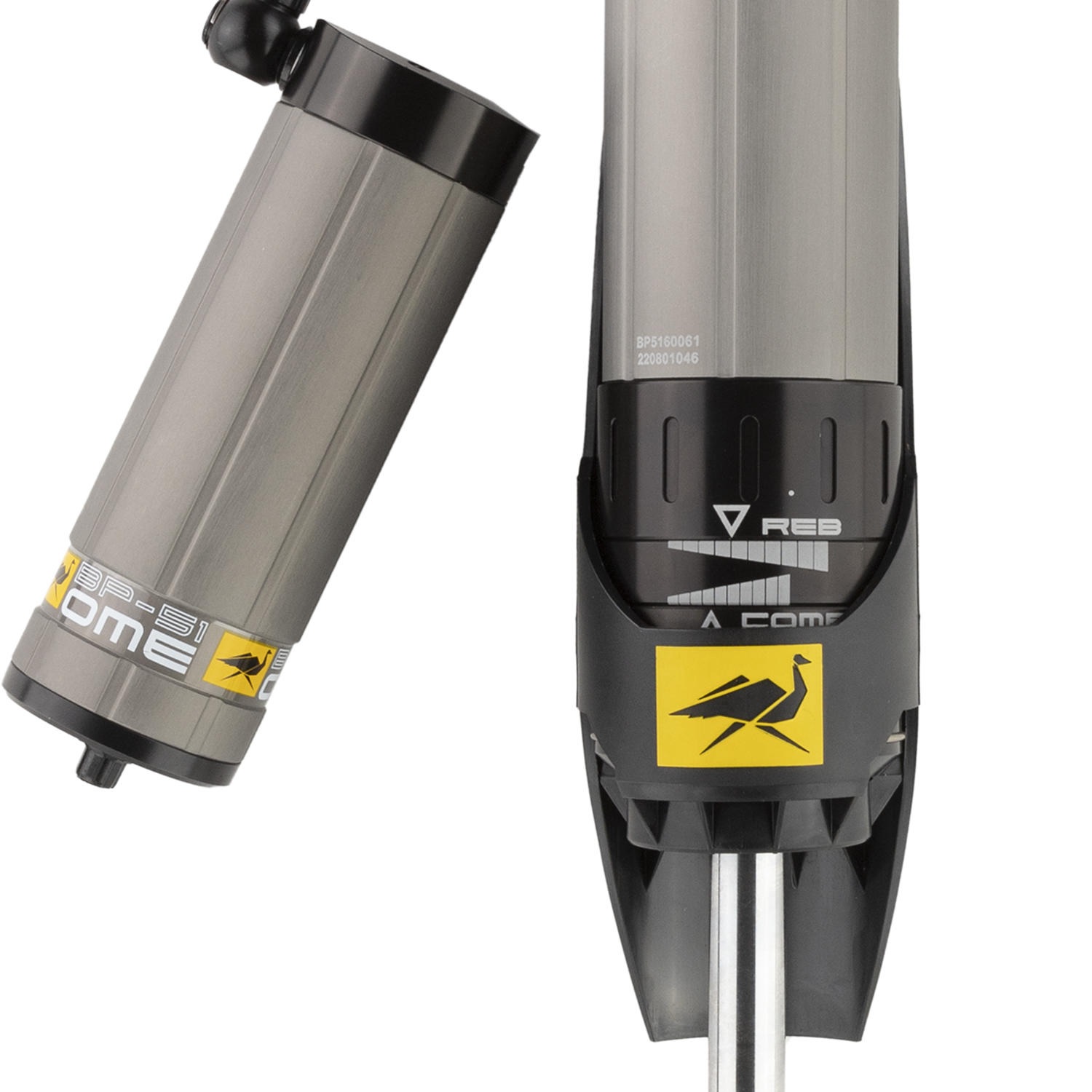

– External adjustment controls for compression and rebound
– Body, expansion bottle and components made of t6 6061 aluminum
– Finished with a 40 micron type 3 anodizing process
– Dash 6 high flow hoses resistant to high temperatures
– Teflon bushing on bearings (coil over models only)
– Preload adjustment (coil over models only)
– High pressure expansion tank with anodized aluminum floating piston.
– Replaceable impact protector
– 19mm chrome stem
