The ARB Intensity Solis provides a whole new level to the ARB Intensity range of driving lights and bars. Introducing digital dimming control and providing a massive 1 lux @ 1,032m for an individual spot beam via the 30 x 4W combined with 6 x 10W high output OSRAM LEDs provides a smooth driving beam.



SPECIFICATIONS

Input – 10 – 30V
Power – 165W
Current draw – 12.4A @132.V
Output – raw – 18,178 lumens
Output – effective – 8,333lumens
1 Lux reading – 729m
Spread – 11 degrees
Input cable length – 450mm
Operating temperature – -40•C to +65*C
Colour temperature – 5,700 Kelvin
Weight – 3.3kg
Connector – 4-pin AT waterproof plug
Dimensions (W x H x D) – 225 x 220 x 120mm

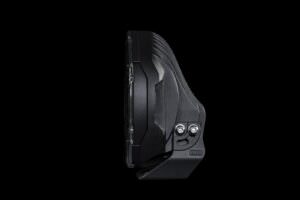

High Pressure Die Cast Aluminium Bracket & Housing

• Scalloped back – more bar fitment possible
• Improved heatsink and UV stabilization
• Adjustable bracket
• Pressure tested breather



Brackets

• Various mounting options
• Vertical & horizontal mounting
• Simplified fitting
• Torx security fasteners



Solis – Touchpad

• Silicone touchpad
• Intuitive feel touch – no eyes off the road
• Simple 3 button control
• Easy fitment
• Cable can be directed at back or out bottom
• Percentage changes – 5%, 25%, 50%, 75%, 100%
• Silicone sleeved for durability and protection
• 58mm (L) x 10mm (D) x 25mm

The touchpad is required to operate the ARB Intensity Solis™ lights if no LINX system is connected



WHAT’S INCLUDED?

• Light
• Extra (black) bezels
• Bracket
• User guide



FEATURES

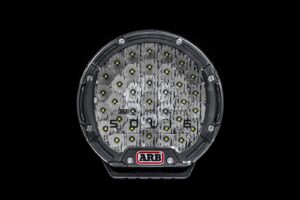

• 30 x 4W OSRAM high output LEDS
• 6 x 10W OSRAM high output LEDS
• Total of 36 LEDs
• High-pressure die-cast housing with improved heat-sink and UV stabilization
• High-pressure die-cast bracket with pinning holes
• Integrated ARB thermal management
• In-built digital dimming LED driver control
• Unique ARB engineered spot & flood reflectors
• 4-pin high amperage waterproof connectors
• 50K lifespan
• Clean and crisp light with a refined colour temperature
• Pressure tested breather
• Reverse polarity
• Mil spec vibration
• IP68
• Over & under voltage
• Compatible with LINX
• Protected against RFI/EMC interference
• RoHS, CE & ECE R10 compliant
• Security TORX hardware included

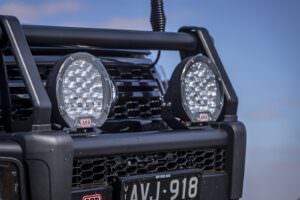

SOLIS LED DRIVING LIGHTS

Filled with features, Intensity Solis driving lights are available in a Spot or Flood beam which come with interchangeable red and black die-cast side bezels. New to the Intensity range is the Solis’ 5-stage dimmability function, while the introduction of a highly tuned single-piece reflector and 165 watts of OSRAM LED performance to bring it to the top of the class in light output.

COMPATIBLE WITH LINX

Solis can be fully integrated into LINX. The customer will need to purchase a patch lead that is simple to install + set up the new light and its features within the LINX system. Features include custom pre-sets, infinite dimming control, courtesy light feature and dedicated Solis icons and functions.
