| Description |
Unlike most brush guards and bumpers, ARB Bumpers incorporate a fully engineered mounting system which completely replaces the factory bumper. ARBs Deluxe Bumper selection is the most extensive. Loaded with features aimed at making remote area travel safe, no other bumper offers the same degree of vehicle integration, protection or functionality.
| N-FAB | MULTI-MOUNT LED M-RDS RADIUS FRONT BUMPER W/SKID PLATE | 2015-2016 F150
- .095 Wall Tubing
- Made In The USA!
- Lights Sold Separately
- CREATE YOUR LOOK!
- Replaces Factory Bumper
- No Cutting or Drilling Required
- Bolts Directly to Factory Bumper Mount
- Bolt on Attachment / No Drilling Required
- Standard Color Is Gloss Black Powder Coat
- Life Time Warranty on Product & 5 Year Warranty on Finish
- Full length Multi-Mount system. Unique patent-pending design allows for installation of multiple styles and combinations of LED lights.
- Fichter Designs licensed to N-FAB, Inc. are Protected U.S. Patent Law and International Copy Right Law. U.S. Patent # 6588783, # 6874801 and # 7416202 other patents and continuances pending. (see policies section of site for more information).
| TJM award-winning Outback bull bars provide the ultimate protection for your Toyota Fortuner and Hilux 09/2015-06/2018 wide-body models. If you're after a bull bar that offers both style and unbeatable performance, you can't go past the TJM Outback bar. BUMPER ACCESSORIES ARE SOLD SEPARATELY.

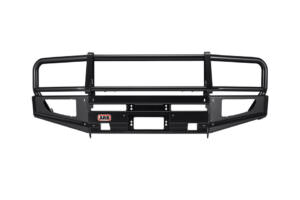

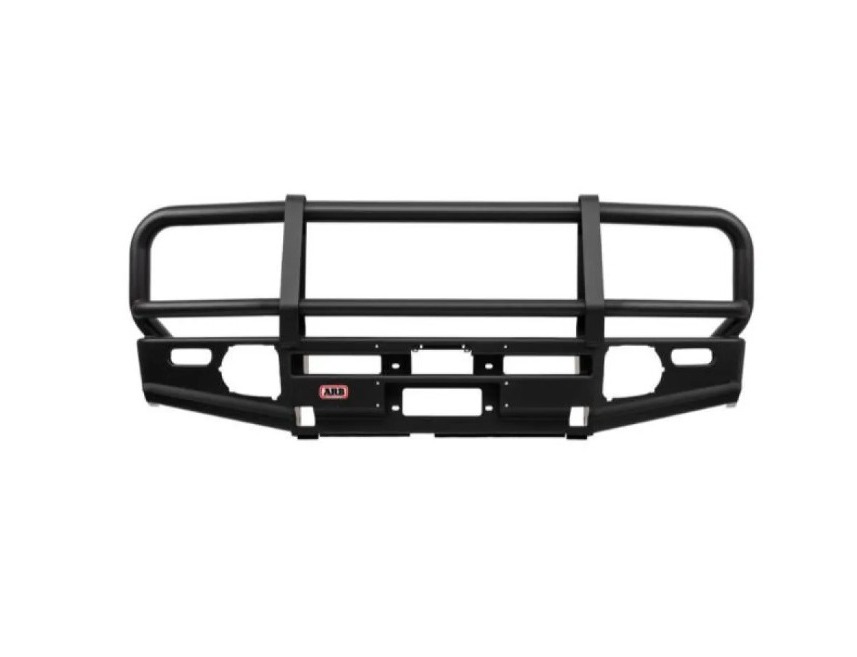

| Deluxe Full Width Black Powder Coat Front Winch HD Bumper with Grille Guard (3420210) by ARB®. Manufactured from steel for ultimate strength and powder coated for durability, the Deluxe winch bumper is designed to complement the vehicle’s style and safety systems while offering a solid platform to mount essential 4×4 accessories in a seamless and integrated package. Deluxe winch bumper is compatible with a selection of popular Warn low mount winches. A cover panel finishes off the bumper for when a winch is not fitted. To complement the bumper, optional fog light kits are also available. Unlike most brush guards and bumpers, ARB Bull Bars incorporate a fully engineered mounting system which completely replaces the factory bumper.
Features:
-
- Expertly crafted from superior materials
- Provides exceptional reliability
- Ensures everlasting service life
- High quality
Loaded with features aimed at making remote area travel safe, no other bumper offers the same degree of vehicle integration, protection or functionality.
Specifications:
-
- Bumper Type: Heavy Duty
- Width: Full
- Guard Included: Full Grille Guard
- D-Rings Mounts: No
- Hitch Mount Ability: No
- Available Lights: Round Lights
- Available Winches: Up to 9,500 lbs.
- Material: Heavy Duty Steel
- Finish: Black Powder Coat
- Weight: 210 lbs.
|
ARB Summit Series Winch Front Bumper with Grille Guard for 2021 and 2022 Broncos.
This full bumper from ARB was designed for use in the toughest conditions, and is compatible with winches up to 10,000lbs. It provides a variety of helpful offroad features like twin jack points, reinforced recovery points, and more. These bumpers will clear a 37" tire and accomodate active cruise control and parking sensors. These bumpers blend seamlessly into the OEM vehicle design, for use with either wide or narrow flares.
Features and Benefits:
- Compatible with winches up to 10,000lb
- Durable, steel construction for maximum protection
- Twin jack points located in lower pan
- Twin forged bar-mounted recovery points
- Clears a 37” tire (suitable suspension lift and rim off set required)
- Approximate weight of the bumper, chassis mounts, and fitting kit is 172lb
- EDP20 Ecoat under powder coat used for additional corrosion resistance
- Finished in Integrit black textured powder coat
- Suits the use of OE LED fog lights
Laser cut provision is provided in the pan and each wing for the Original Equipment front parking sensors. OE parking sensors have been mapped and their performance closely replicated when fitted to the Bronco. Test results show that sensor performance is replicated as close as practical with the change in height of the sensors location.
The Ford Bronco is fitted with Adaptive Cruise Control depending on the specification. The ARB bumper incorporates provision for the relocation of the radar unit to a position that is 8in forward, 3in right and 5in higher than the OE position. The standard OE Adaptive Cruise Control cover and adjustment are retained.
The ARB Summit Bumper for the Bronco features dual bar-mounted 8T rated forged recovery points. The points are rated to 8T in a direction of pull up to the maximum turn angle of the front wheels. Each bumper comes standard with two reinforced high lift jacking points fitted to the center pan, perfect for use with the ARB Jack.
Tech Tip:
- Painting of parking sensors is not recommended due to the potential unknown effect on the operation of the sensors. Sensor plugs as shown in the photos are included for vehicles without parking sensors.
|
With a more low profile design, the Patrol Sahara bar provides an alternative look to the range of deluxe bars, whilst retaining many of the strength and protection features.Offering significantly greater protection than the factory bumper, the Sahara bar is available with or without the polished centre tube and can accommodate a selection of Warn, Magnum, Bushranger and Smittybilt low mount winches.
FEATURES
-
- Vehicle specific design to complement the Y62 Patrol and maximise functionality
- Durable steel construction for maximum protection
- Incorporates ARB’s renowned multi fold upswept and tapered wing design for optimum strength and approach angle
- Fully compatible with Nissan Advanced Safety Shield option (Note: does not allow for winch fitment due to the radar system obstructing fitment)
- Split pan design for maximum strength and airflow
- Superbly engineered, airbag compatible mounting system secures to chassis via high tensile bolts
- Additional protection panels for lower front vehicle components with specific wing panels and stone tray
- The bar can be configured with or without an 89mm polished alloy centre tube
-
- Twin Hi-Lift jacking points located in the pan of the bar
- Provision to accommodate ARB Intensity LED, and a range of IPF and Bushranger driving lights
- Injection moulded fog light/turn signal surrounds with provision for ARB fog lights
- Durable urethane buffers
- Retains original equipment tow point
- Two laser-cut mounting holes in the centre pan for CB aerial fitment (Note: two additional CB aerial brackets located in the optional polished centre tube.)
- Finished in a hard-wearing powder coat with the added option of colour coding to individual vehicles
|
| Content |
- Durable Steel Construction
- Black Powder Coat
- Multi Fold Upswept And Tapered Wing Design
- Split Pan Design
- Extensive Under Protection Panels
- Twin Hi-Lift Jacking Points
- Provisions For ARB Fog Lights
- Durable Urethane Buffers
- OEM Tow Points
- For use with IFS models
- Provision for driving lights
- Suits most low mount electric winches, up to 12,000 lb capacity
- Hawse fairlead spacer kit part 3500600 required when fitting a hawse fairlead
- Optional ARB fog light kit part 6821201 (halogen) or 3500890 (LED)
- Loom required when installing fog light kit part 3500440 (halogen) or 3500520 (LED) Not requires with factory fogs
| | | | | |
| Additional information |
| Weight |
79 kg |
| Dimensions |
200 × 62 × 82 cm |
|
| Weight |
45 kg |
| Dimensions |
220 × 70 × 70 cm |
|
| Weight |
80 kg |
| Dimensions |
200 × 84 × 28 cm |
|
| Weight |
110 kg |
| Dimensions |
190 × 40 × 60 cm |
|
| Weight |
60 kg |
| Dimensions |
208 × 75 × 85 cm |
|
| Weight |
100 kg |
| Dimensions |
210 × 82 × 36 cm |
|
