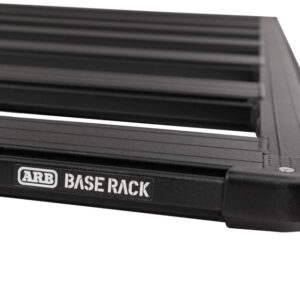

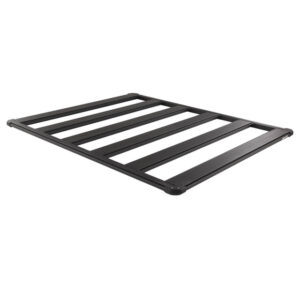

Introducing the next phase in roof rack evolution, the ARB BASE Rack. Ultra-sleek, boasting a low mounting profile and lightweight design, the ARB BASE Rack incorporates a unique dovetail accessory mounting system that makes attaching and removing accessories easier, faster, and more secure. When developing ARB’s BASE Rack one of the requirements of our engineering team was to have a complete roof rack system – racks, mounts, guard rails, and equally important, a wide range of BASE Rack accessories.




    • Constructed from extruded aluminium beams featuring rigid internal bracing
    • Fully welded construction (excluding corner caps)
    • BASE Rack comes fully assembled ready to fit to mount brackets (sold separately)
    • Integrity textured black powder-coat finish
    • Strength through design requires no additional crossbars
    • Dovetail accessory attachment design allows easy to install one-handed attachment for various accessories
    • Provision for easy running of wiring within the BASE Rack assembly
    • 5 Beams
    • Weight – 17.1kg
    • Carrying Capacity (approx) – 125kg
    • 1.5 x 1.2MTR



    • Various vehicle applications. Refer Product Information Bulletin No.1299 ARB BASE Rack Fitment Matrix for full vehicle listings
    • It is recommended that either the optional wind deflector manufactured from powder-coated press formed 1.6mm aluminium or ARB Roof Rack LED light bar is fitted below the front beam to reduce wind noise
    • ARB Roof Rack LED light bar PN 1780500 either in conjunction with the deflector or light bar can be mounted in place of the deflector below the front beam
    • The maximum load per BASE Rack beam is 25kg. The net Payload of the rack is dependent on vehicle specifications. Loads must be evenly distributed and adequately secured
    • Required tools for fitment: 10mm spanner x 1, 13mm spanner x 1, hex key (supplied in kit), tape measure


Note – Please be aware that with speeds over 50mph you may hear air noise, which will come from the rack area. Due to this we strongly recommend using the ARB LED bar, which is designed to decrease noise.
