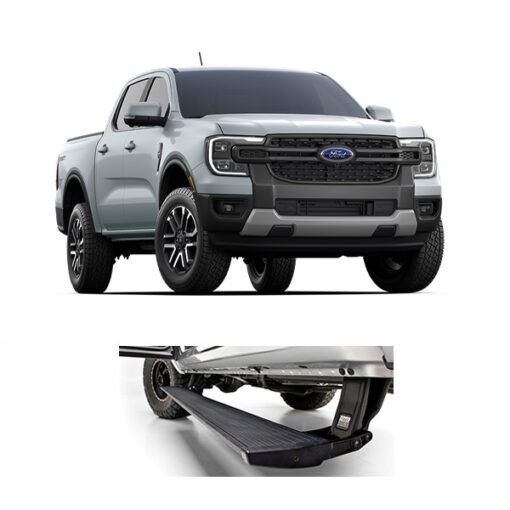

AMP RESEARCH | POWERSTEP ELECTRIC RUNNING BOARD (PLUG & PLAY) | RANGER 2023+

AMP Research PowerStep™ offers retractable running boards with die-cast aluminum, PTFE coating, LED lights & vehicle-specific fit—style meets function.

• The original power-retractable running boards
• Premium, single-motor design automatically deploys and retracts boards
• Corrosion-resistant die-cast aluminum construction
• Military-grade black PTFE coating
• 6-inch wide, cab-length steps
• Textured, slip-resistant step surface
• Low-profile, integrated LED courtesy lights
• Optional Override Switch is available for manual control
• Includes vehicle-specific installation guide and mount kit
• Mounts to vehicle’s rocker panel
• Newer applications connect to OBDII port via Plug-N-Play module
• Professional installation recommended
• PowerSteps automatically deploy when the door opens and will retract after a 3 second delay when the door closes.
• AMP Research PowerStep running boards drop much lower than other steps. Most stationary running boards rest 1-2 inches below the body and are often still too far from the ground to be convenient for many passengers.
• The PowerStep running boards tuck under the vehicle when retracted, providing amazing ground clearance while driving, and the functionality of a perfectly placed step when deployed.
• The board width is a massive 6 inches and perfect for any type of footwear.
• All PowerSteps Include two pair of LED lights to illuminate the running board and ground below to maximize safety when entering and exiting your vehicle. The lighting will activate when the steps deploy and will shut off when the steps are retracted!
• From the brackets to the boards, each PowerStep running board features a 600 LB load capacity – that is twice the weight capacity as most other steps!

**Cleaning your PowerStep

In adverse conditions, debris such as mud, dirt, and salt may become trapped in the running board mechanism, possibly leading to unwanted noise, or binding.

**Prepare for cleaning

**Manually set the running boards to deploy: The running boards can be manually set in the deployed position by opening the door, and then place your foot on the step. Leave firm pressure with your foot on the step while you close the door. This will leave your steps in the deployed position.

**How to maintain your steps:

Using a pressure washer to clean the front and rear linkages which are all 4 hinge points for your PowerSteps.

**Avoid spraying the motors directly.

• After washing, apply silicone spray (dry Film lubricant) only, to all 4 linkage arms and all pivot pins, some of these pins will be located up high on the linkage arm as well. Then cycle the door to work the lubrication in to the hinge points.
• Do not apply silicone, wax, or protectants like Armor All® to the running board. Do not lubricate with any greases, oils, WD-40, or penetrants.
• This cleaning should be done periodically, or when debris such as mud, dirt or salt becomes trapped in the running board mechanism.
