| Description | The new BP-51 range of high performance, bypass shock absorbers is the result of an exhaustive development process aimed at delivering the ultimate in both comfort and control. Designed, developed and tested entirely in-house by ARB’s team of Old Man Emu ride engineers, BP-51 shock absorbers are vehicle-specific and utilize existing mounting locations to provide easy installation without the need for additional vehicle modification. Unlike most other adjustable shock absorbers, which provide adjustment for compression only, the BP-51 range allows on-vehicle, independent adjustability of both rebound and compression to offer class-leading ride customisation that can be tailored to an individual vehicle or trip requirements.
FEATURES
-
- Estimated Lift: 40-50mm
- REMOTE RESERVOIR - 6061-grade aluminium remote oil canister allows for increased oil volume, resulting in lower oil temperatures.
- HIGH-TEMPERATURE HOSE - Durable Dash 6 high-temperature Teflon hose incorporates high-flow fittings for optimum oil flow.
- TOP HAT - 6061-grade aluminium top hat.
- SPRING ADJUSTMENT - 6061 grade aluminum adjustor allows adjustment of spring preload and ride height.
- X5K COIL - High-quality X5K grade steel coil, for use on coil over models, incorporates application-specific design.
- SPRING SEAT - 6061 grade aluminum spring seat.
- SPHERICAL BEARINGS - Large, Teflon-lined spherical bearings.
- PIGGY BACK CLAMP - Remote reservoir piggy back clamp allows easy connection of the remote oil reservoir to the main shock absorber body.
- SHOCK ABSORBER BODY - 51mm bore, 6061 grade aluminum shock absorber body with type III, hard anodized finish for increased heat dissipation and corrosion resistance.
- ADJUSTOR - External, independent rebound and compression adjustment allows fine tuning of ride comfort and control to suit varying vehicle and trip requirements.
- PISTON SHAFT - Hard chromed, ground piston shaft for the ultimate in strength and durability.
- SHAFT GUARD - Replaceable, impact resistant, high-density polyethylene shaft guard prevents damage to the shock absorber shaft from stones and other debris.
- BUSHINGS - Quality oversized rubber bushings result in excellent longevity.
|
- TC upper control arms combined with extended length coil over shocks will allow for up to 1” of additional wheel travel.
- 4130 chromoly tubular upper control arms are 100% bolt on and hand crafted in the U.S.A.
- The uniball cup placement is moved to correct the caster angle that is lost with aftermarket lift kits. Vehicles that have an increased ride height are harder to align. The added caster reduces the darting or wandering in the vehicles steering and helps retain the factory alignment specifications.
- 1" I.D. uniballs feature a heat-treated stainless-steel ball & heat-treated stainless-steel race for maximum corrosion resistance and component longevity. These uniballs also feature a military grade PTFE woven fabric liner that helps prevent noise and reduce maintenance.
- CNC tapered spindle adapters convert the factory ball joint to a 1" uniball for easy installation.
- Custom profile upper and lower hi-misalignment spacers are machined from 17-4 stainless-steel to maximize strength and wheel travel.
- Urethane bushings reduce deflection compared to stock rubber bushings.
- Control arm pivots include zerk fittings to grease the bushings and inner sleeves without disassembly.
- 3 stage powder coat process includes a durable clear coat to provide a long lasting finish.
- Complete grade 8 hardware kit is included.
|
GM SUV/SUT 1.5" Rear Coil Spring Spacer Kit 1999-2020 GM/ CHEVY 1500 TAHOE/SUBURBAN/ YUKON/YUKON XL/ H2 2WD/4WD BILLET ALUMINUM CONSTRUCTION Note: Not compatible with AutoRide, Air Leveling, and/or MagnaRide Suspension
|
- 100% bolt on.
- Upper and lower links are constructed from 1 1/2" .188 wall 4130 chromoly tubing for maximum strength and feature massive 1.250” chromoly heim joints.
- Panhard bar is constructed from 1 1/4” .250 wall 4130 chromoly tubing for maximum strength and uses 7/8” chromoly heims.
- Upper, lower and pan hard bars are designed to incorporate a heim joint making the entire rear link system length adjustable
- Includes greasable urethane pivot bushings.
- Capable of more wheel travel with custom shocks and mounts.
- Hi-misalignment spacers included, re-uses factory mounting hardware.

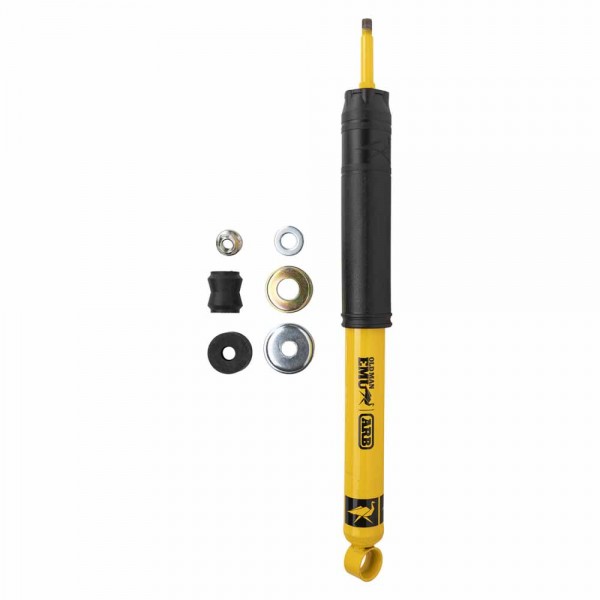

| The Nitrocharger Sport range utilizes significant advances in key componentry and the latest in valving technology to provide tremendous improvements in ride, comfort and handling over all terrains.
Vehicle specific valving ensures the proper valving is matched to your spring selection, accessory fitment and load carrying requirements, meaning there’s a Nitrocharger Sport Shock Absorber to suit your needs, no matter what the terrain or intended vehicle use.
Nitrocharger Sport Shock Absorbers offer the most cohesive, balanced and finely tuned valving system on the market.
FEATURES
-
- Estimated Lift: 40-50mm
- MULTI-DISC COMPRESSION VALVING - Six valving discs allow greater valving options for the maximum ride and handling performance.
- HEAVY GAUGE RESERVE TUBE - Heavy gauge (1.6mm) steel reserve tube is 23% more effective than common 1.3mm wall tubing to protect internal components from stone damage.
- HIGH-QUALITY OIL - Petroleum-based, high-performance formula designed to resist fade and aeration for improved durability and shock absorber performance.
- DUAL-STACK DEFLECTIVE DISC TECHNOLOGY - Durable rebound and compression multi-deflective disc stacking on either side of the free-flowing piston allows infinite tuning options.
- NITROGEN GAS Increases the temperature operating range and improves oil flow through the valving, ensuring optimum performance.
- MULTI-DISC COMPRESSION VALVING - Six valving discs allow greater valving options for the maximum ride and handling performance.
- ROD GUIDE - Large, low friction Teflon impregnated bronze bushing for long-lasting durability.
- TRIPLE LIP OIL SEAL - Large, durable seal incorporates a gas retention check valve design to virtually eliminate contaminant damage while providing outstanding gas and oil retention.
- PISTON ROD - Super strong 18mm induction hardened chrome piston rod is engineered to handle rigours of heavy loads and tough 4x4 touring.
- DIRT SHIELD - Impact resistant, polyamide dirt shield provides additional protection from stone chips and off-road debris.
- VEHICLE SPECIFIC BUSHINGS - High-quality, vehicle-specific bushing manufactured from polyurethane and rubber materials for extended life.
|
