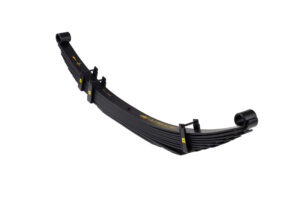

Name: ARB | Leaf Spring 45mm | LC78/LC79 2DR (800kg) | LC79 4DR (700kg) | Off Road Performance
Brand: ARB
SKU: EL116R
Price: 180.000 KWD
Availability: InStock

ARB | Leaf Spring 45mm | LC78/LC79 2DR (800kg) | LC79 4DR (700kg)

180.000 KWD

Old Man Emu leaf springs are engineered to provide optimum ride performance irrespective of the operating conditions in which they operate. Numerous spring options are available to suit a multitude of applications, allowing you to set your vehicle up for recreational or commercial purposes. Feature packed, a set of Old Man Emu leaf springs, matched to a set of Old Man Emu 4×4 shock absorbers will deliver vastly improved ride, handling and load carrying capability.

SKU: EL116R Category: Suspensions Brand: ARB

Description

Draw Tapered And Diamond Cut Leaves Ensure The Load Is Progressively Distributed Over A Larger Surface Area, Reducing The High Stresses That Develop At Leaf Ends, Increasing Ride Comfort And Longevity
Fully Scragged To Ensure The Spring Takes A Permanent ‘set’ Which Reduces The Risk Of Sagging
Military Wrap Designed To Provide Added Safety
Re-Greasable Nylon Interleaf Anti-Friction Pads Reduce Friction At The Leaf Tips Where The Load Is The Greatest
Load Testing Ensures The Spring Meets The Required Specification
Flat Axle Seat Area Allows A Positive, Safe Axle Mount Reducing Spring Stress And Increasing Spring Life
The Tension Side Of All Leaves Is Shot Peened To Reduce Spring Stress, This Process Can Double The Life Of A Spring
Two-Stage Leaf Pack Featured On Most Rear Springs For Optimum Comfort
When Unladen, The Vehicle Is Largely Riding On The Primary Stage, With The Secondary Stage Providing Additional Support When A Heavy Load Is Added

Additional information

Weight	58 kg
Dimensions	140 × 32 × 8 cm
